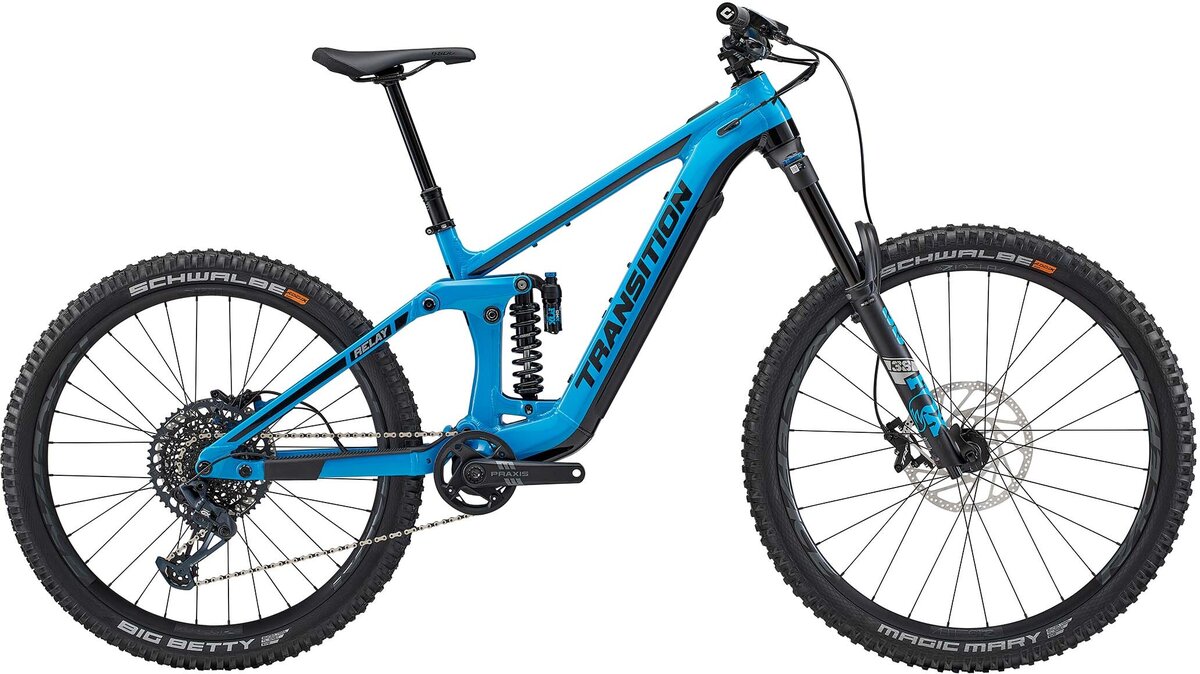

Transition Relay PNW Alloy GX

Transition Relay PNW Alloy GX
  • Color: TR Blue
  • Color: Oxide Grey
$8,050.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable

Details

The Mountain Bikers eMTB

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Sizes:
XSSMMDLGXLXXL
A.REACH 410/405 430/422 460/452 485/477 510/502 535/527
B.STACK (CARBON) 590/588 615/615 628/634 637/643 646/652 655/661
B.STACK (ALLOY) 595/593 620/620 628/634 637/643 646/652 655/661
C.EFFECTIVE TT LENGTH 523/532 553/564 586/597 614/631 642/665 671/696
D.SEAT TUBE LENGTH (CARBON) 380 390 410 430 460 490
D.SEAT TUBE LENGTH (ALLOY) 410 410 410 430 460 490
E.EFFECTIVE ST ANGLE 79.7/79.3 79.1/78.4 78.4/77.7 77.8/77.1 77.3/76.6 77/76.3
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE 560 600 660 720 780 820
ACTUAL ST ANGLE 71/70.6 71/70.3 71/70.3 71/70.3 71/70.3 71/70.4
SEAT TUBE OFFSET AT BB 90 90 90 90 90 90
F.HEAD TUBE LENGTH (CARBON) 100 100 115 125 135 145
F.HEAD TUBE LENGTH (ALLOY) 105 105 115 125 135 145
G.HEAD TUBE ANGLE 64/63.6 64/63.3 64/63.3 64/63.3 64/63.4 64/63.4
H.CHAINSTAY LENGTH 436 442/440 442/440 448/446 448/446 448/446
I.WHEELBASE 1167/1172 1208/1211 1244/1247 1280/1282 1309/1312 1338/1341
J.BOTTOM BRACKET DROP 15/11 25 25 25 25 25
K.ESTIMATED BB HEIGHT 340/343 350 350 350 350 350

Part Numbers

Option UPC MPN Store SKU
Oxide Grey / X-Small / 27.5-inch 769165684035 01.23.11.5000
Oxide Grey / Small / 29-inch 769165684059 01.23.11.5002
Oxide Grey / Medium / 29-inch 769165684073 01.23.11.5004
Oxide Grey / Large / 29-inch 769165684097 01.23.11.5006
Oxide Grey / X-Large / 29-inch 769165684134 01.23.11.5008
Oxide Grey / XX-Large / 29-inch 769165684158 01.23.11.5010
TR Blue / X-Small / 27.5-inch 769165684042 01.23.11.5001
TR Blue / Small / 29-inch 769165684066 01.23.11.5003
TR Blue / Medium / 29-inch 769165684080 01.23.11.5005
TR Blue / Large / 29-inch 769165684103 01.23.11.5007
TR Blue / X-Large / 29-inch 769165684110 01.23.11.5009 210000015213
TR Blue / XX-Large / 29-inch 769165684127 01.23.11.5011
