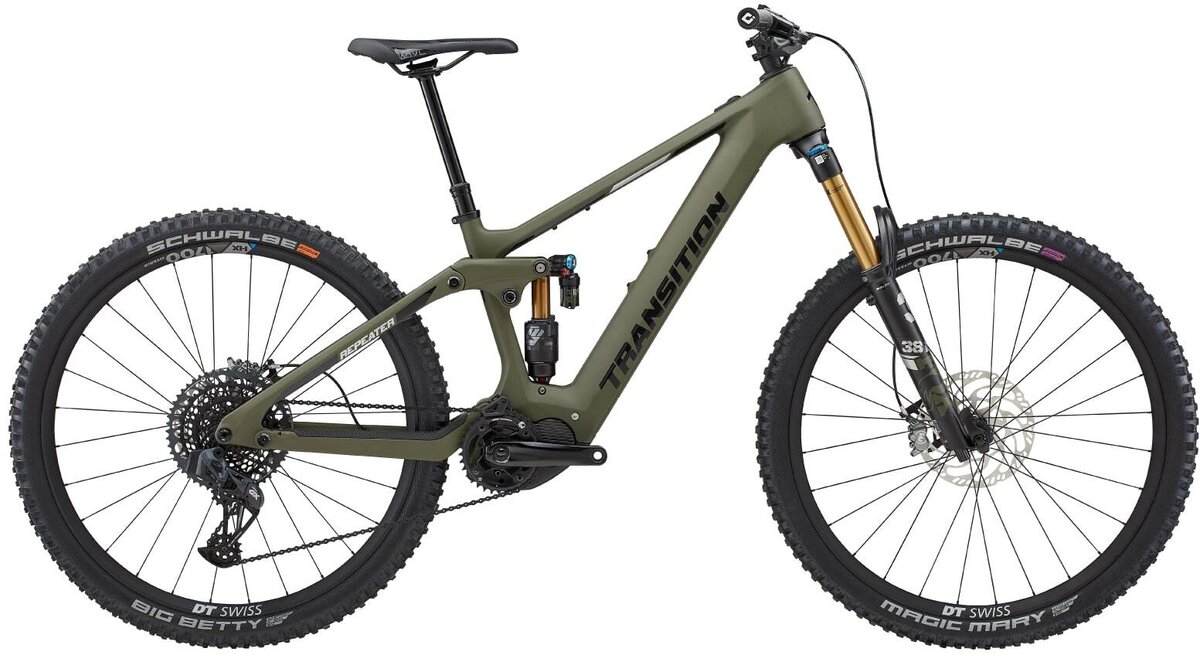

Transition Repeater Carbon AXS
$11,050.00
Details
Buckle up and get ready to charge, the Repeater is down for anything. With 160mm travel, 29 inch wheels, the Shimano EP8 motor system, and a 630w battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| A. REACH | 425 | 455 | 480 | 510 |
| B. STACK | 631 | 631 | 640 | 649 |
| C. EFFECTIVE TT LENGTH | 559 | 589 | 617 | 650 |
| D. SEAT TUBE LENGTH | 375 | 400 | 440 | 470 |
| E. EFFECTIVE ST ANGLE | 78.4° | 77.9° | 77.4° | 77.1° |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL ST ANGLE | 72.5° | 72.5° | 72.5° | 72.5° |
| SEAT TUBE OFFSET AT BB | 65 | 65 | 65 | 65 |
| F. HEAD TUBE LENGTH | 110 | 110 | 120 | 130 |
| G. HEAD TUBE ANGLE | 64° | 64° | 64° | 64° |
| H. CHAINSTAY LENGTH | 455 | 455 | 455 | 455 |
| I. WHEELBASE | 1221 | 1251 | 1280 | 1315 |
| J. BOTTOM BRACKET DROP | 30 | 30 | 30 | 30 |
| K. ESTIMATED BB HEIGHT | 340 | 340 | 340 | 340 |
| L. STAND OVER HEIGHT | 705 | 715 | 720 | 725 |
| M. FORK OFFSET | 44 | 44 | 44 | 44 |
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Mossy Green / Small / 29-inch | 769165687852 | 01.22.11.4710 | |
| Mossy Green / Medium / 29-inch | 769165687869 | 01.22.11.4712 | |
| Mossy Green / Large / 29-inch | 01.22.11.4714 | 210000012389 | |
| Mossy Green / X-Large / 29-inch | 01.22.11.4716 |
